AH42F-16C液化石油氣安全閥外形尺寸 |
| 發布時間：2016/4/25 |
|
|
|
一、AH42F液化石油氣安全閥概述：
AH42F液化石油氣安全閥適用于工作溫度在-40～80℃的液化石油氣的液相出口管上，當進出口壓差0.5MPa時液化石油氣能自動回流入罐。AH42F液化石油氣安全閥廣泛應用于市政建設、農田、燃?xì)�、水利、火力發電、石油化工、冶金礦山、消防環保、食品、航運、醫藥和輕紡等各個領域。

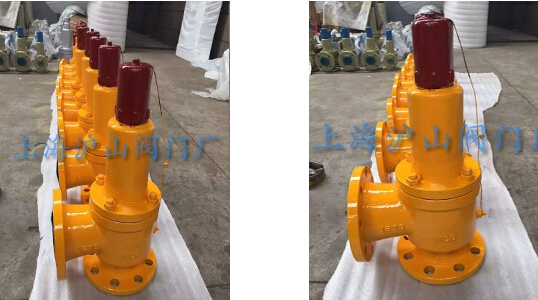

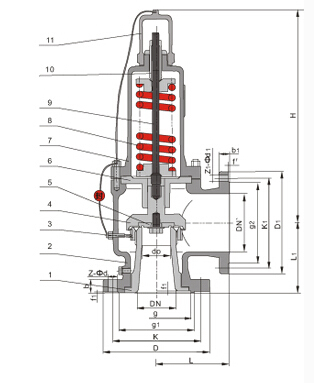

二、AH42F液化石油氣安全閥外形尺寸：
|
型號
|
公稱
通徑
|
do
|
D
|
K
|
g
|
g1
|
b
|
f
|
f1
|
Z-￠d
|
DN'
|
D1
|
K1
|
g2
|
b1
|
f'
|
Z1-￠d1
|
L
|
L1
|
≈H
|
|
AH42F-16C
A42F-16C
|
20
|
15
|
105
|
75
|
|
55
|
16
|
2
|
|
4-14
|
25
|
115
|
85
|
65
|
16
|
2
|
4-14
|
110
|
95
|
378
|
|
25
|
16
|
115
|
85
|
|
65
|
16
|
2
|
|
4-14
|
32
|
140
|
100
|
78
|
18
|
2
|
4-18
|
110
|
95
|
378
|
|
32
|
20
|
140
|
100
|
|
78
|
18
|
2
|
|
4-18
|
40
|
150
|
110
|
85
|
18
|
3
|
4-18
|
115
|
100
|
378
|
|
40
|
25
|
150
|
110
|
|
85
|
18
|
3
|
|
4-18
|
50
|
165
|
125
|
100
|
20
|
3
|
4-18
|
120
|
110
|
406
|
|
50
|
32
|
165
|
125
|
|
100
|
20
|
3
|
|
4-18
|
65
|
185
|
145
|
120
|
20
|
3
|
4-18
|
135
|
120
|
450
|
|
65
|
40
|
185
|
145
|
|
120
|
20
|
3
|
|
4-18
|
80
|
200
|
160
|
135
|
20
|
3
|
8-18
|
160
|
140
|
520
|
|
80
|
50
|
200
|
160
|
|
135
|
20
|
3
|
|
8-18
|
100
|
220
|
180
|
155
|
22
|
3
|
8-18
|
170
|
135
|
525
|
|
100
|
65
|
220
|
180
|
|
155
|
22
|
3
|
|
8-18
|
125
|
250
|
210
|
185
|
22
|
3
|
8-18
|
195
|
175
|
690
|
|
125
|
80
|
250
|
210
|
|
185
|
22
|
3
|
|
8-18
|
150
|
285
|
240
|
210
|
24
|
3
|
8-23
|
210
|
190
|
780
|
|
150
|
100
|
285
|
240
|
|
210
|
24
|
3
|
|
8-23
|
175
|
310
|
270
|
240
|
26
|
3
|
8-23
|
255
|
230
|
838
|
|
200
|
125
|
340
|
295
|
|
265
|
26
|
3
|
|
12-23
|
250
|
405
|
355
|
320
|
30
|
3
|
12-26
|
300
|
260
|
992
|
|
250
|
150
|
405
|
355
|
|
320
|
30
|
3
|
|
12-26
|
300
|
460
|
410
|
375
|
30
|
4
|
12-26
|
350
|
320
|
1266
|
|
300
|
220
|
460
|
410
|
|
375
|
30
|
4
|
|
12-26
|
400
|
580
|
525
|
485
|
36
|
4
|
16-30
|
370
|
350
|
1283
|
|
350
|
250
|
520
|
470
|
|
435
|
34
|
4
|
|
16-26
|
500
|
715
|
650
|
608
|
44
|
4
|
20-34
|
500
|
450
|
1520
|
|
400
|
280
|
580
|
525
|
|
485
|
36
|
4
|
|
16-30
|
500
|
715
|
650
|
608
|
44
|
4
|
20-34
|
500
|
450
|
1530
|
|
|
